Dimmer power distribution diagrams

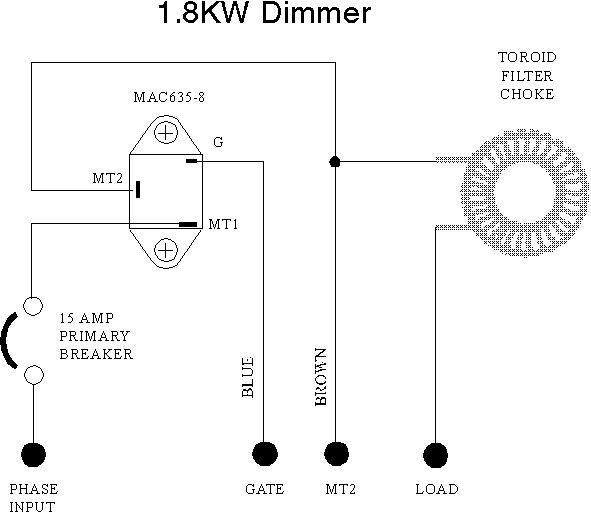

TEC8112-1.8 KW 1500 Watt

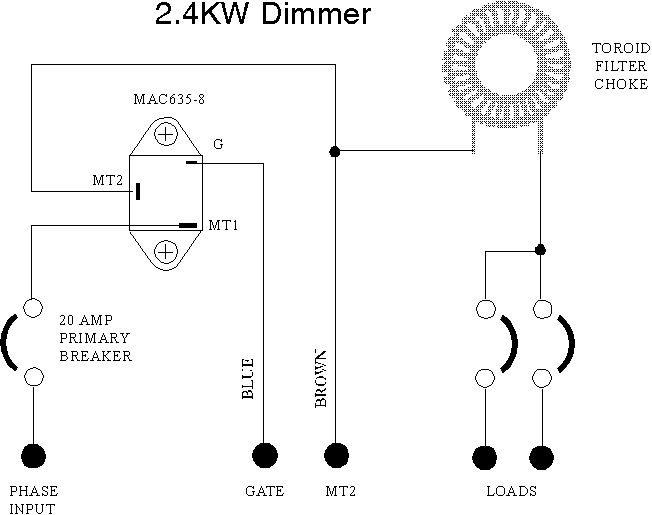

TEC8112-2.4 KW 2000 Watt

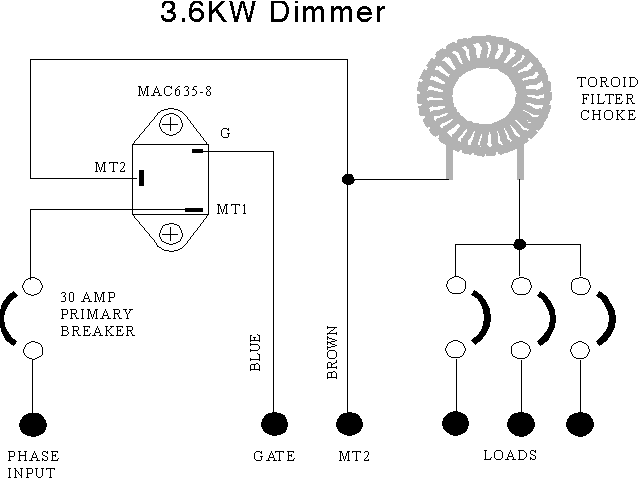

TEC8112-3.6 KW 3000 Watt

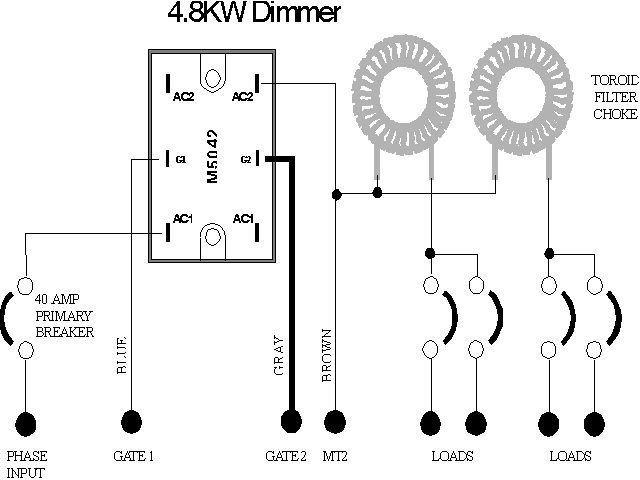

TEC8112-4.8 KW 4000 Watt
